Обзор
Gate Drivers 25V/60A INTEGRATED DRIVER AND MOSFETS
Детали продукта
| Section | Attribute | Value |
|---|---|---|

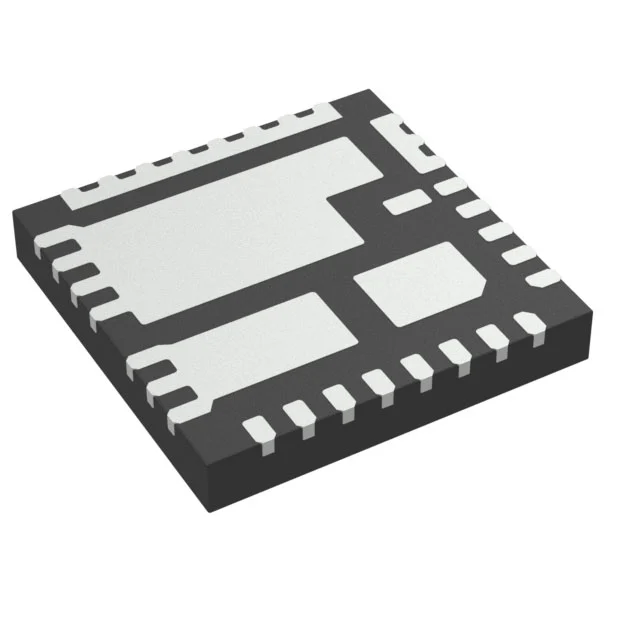

| Physical | Case/Package | PQFN-31 |
| Mount | Surface Mount | |
| Package / Case | 31-PowerWFQFN | |
| Supplier Device Package | 31-PQFN (5x5) | |
| Packaging | Tape & Reel (TR) | |
| Number of Pins | 31 | |
| Technical | Product | MOSFET Gate Driver |
| Type | High-Side, Low-Side | |
| Output Configuration | Half Bridge | |
| Technology | N-Channel MOSFET | |
| Applications | DC-DC Converters | |
| Interface | PWM | |
| Load Type | Inductive, Capacitive, Resistive | |
| Number of Drivers | 2 | |
| Number of Outputs | 2 | |
| Output Current | 55 A | |
| Peak Output Current | 60 A | |
| Supply Voltage Min | 4.5 V | |
| Supply Voltage Max | 5.5 V | |
| Input Voltage Min | 4.5 V | |
| Input Voltage Max | 16 V | |
| Voltage - Load | 4.5 V to 16 V | |
| Rise Time | 12 ns | |
| Fall Time | 6 ns | |
| Maximum Turn-On Delay Time | 35 ns | |
| Maximum Turn-Off Delay Time | 65 ns | |
| Operating Supply Current | 30 mA | |
| Rds On - Drain Source Resistance | 900 mOhms | |
| Switching Frequency | Up to 2 MHz | |
| Bootstrap Diode | Internal | |
| Undervoltage Lockout | Yes | |
| Thermal Warning Output | Yes | |
| 3-Level PWM Support | Yes | |
| Intel Power State 4 Support | Yes | |
| Operating Temperature Min | -40 °C | |
| Operating Temperature Max | +125 °C | |
| Series | NCP252160 | |
| Compliance | Lead Free | Yes |
| RoHS | Compliant | |
| REACH | Contains SVHC (Lead) | |
| ECCN | EAR99 | |
| Radiation Hardening | No |
