Обзор

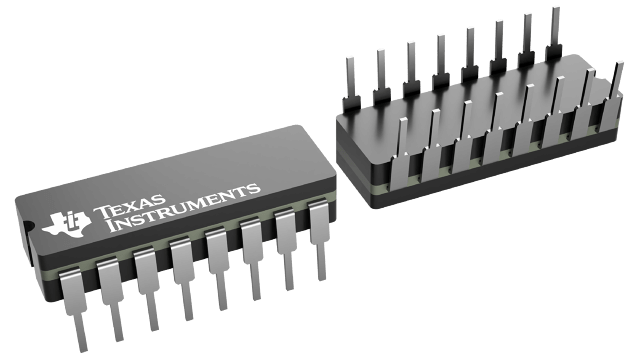

Find and request a quote for CD4050BF3A from us. We are offering our customers a wide range of Texas Instruments.
Детали продукта
| Section | Attribute | Value |
|---|---|---|
| Physical | Case/Package | CDIP |
| Mount | Through Hole | |
| Number of Pins | 16 | |
| Technical | Logic Family | CD4000 |
| Logic Type | Hex Buffer / Converter | |
| Number of Channels | 6 | |
| Number of Elements | 6 | |
| Input Type | CMOS | |
| Output Type | Buffered | |
| Propagation Delay | 60 ns | |
| Supply Voltage Min | 3 V | |
| Supply Voltage Max | 18 V | |
| Operating Supply Voltage | 3 V to 18 V | |
| High Level Output Current | -3.4 mA | |
| Low Level Output Current | 3.4 mA | |
| Quiescent Current | 20 µA | |
| Maximum Operating Temperature | 125 °C | |
| Minimum Operating Temperature | -55 °C | |
| Technology | CMOS | |
| Function | Non-Inverting Buffer | |
| Number of Inputs | 6 | |
| Number of Outputs | 6 | |
| Compliance | Lead Free | Contains Lead |
| Radiation Hardening | No | |
| RoHS | Compliant |
