Обзор

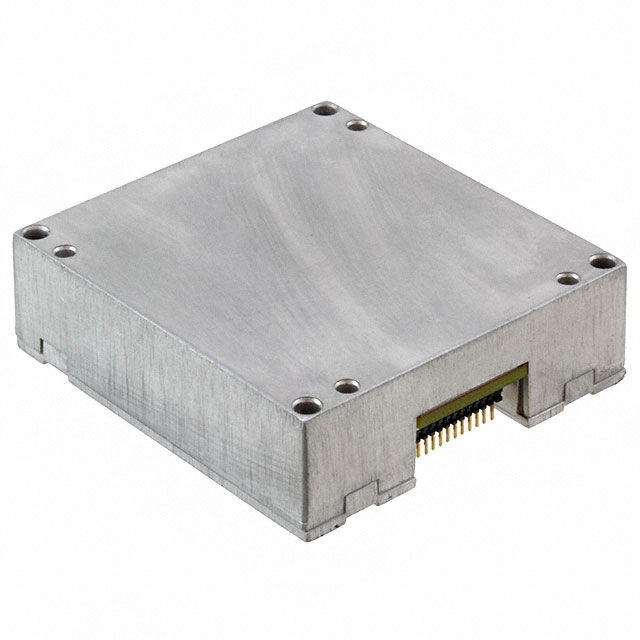

Find and request a quote for ADIS16490 BMLZ from us. We are offering our customers a wide range of Hard to Find IC.
Детали продукта
| Section | Attribute | Value |
|---|---|---|
| Physical | Case/Package | Module |
| Packaging | Bulk | |
| Unit Weight | 71.282 g | |
| Technical | Sensor Type | 6-axis |
| Product Type | IMU - Inertial Measurement Unit | |
| Interface Type | SPI | |
| Output Type | Digital | |
| Sensing Axis | X, Y, Z | |
| Acceleration | 8 g | |
| Resolution | 16 bit | |
| Sensitivity | 76.294 ndeg/s/LSB | |
| Bandwidth | 480 Hz | |
| Supply Voltage Min | 3 V | |
| Supply Voltage Max | 3.6 V | |
| Operating Supply Current | 89 mA | |
| Operating Temperature Min | -40 °C | |
| Operating Temperature Max | +105 °C | |
| Series | ADIS16490 | |
| Features | Factory Calibrated Sensitivity, Bias and Axial Alignment, Programmable Operation and Control | |
| Gyroscope Axes | 3 | |
| Accelerometer Axes | 3 | |
| Degrees of Freedom | 6 | |
| Temperature Sensor | Integrated | |
| Factory Calibration | Yes | |
| Programmable Operation | Yes | |
| Compliance | RoHS | Compliant |
| ECCN | 7A994 | |
| Country of Origin | Philippines | |
| Radiation Hardening | No |
