Обзор
Buy ADG506ATQ/883B with fast shipping and top-rated customer service.
Детали продукта
| Section | Attribute | Value |
|---|---|---|

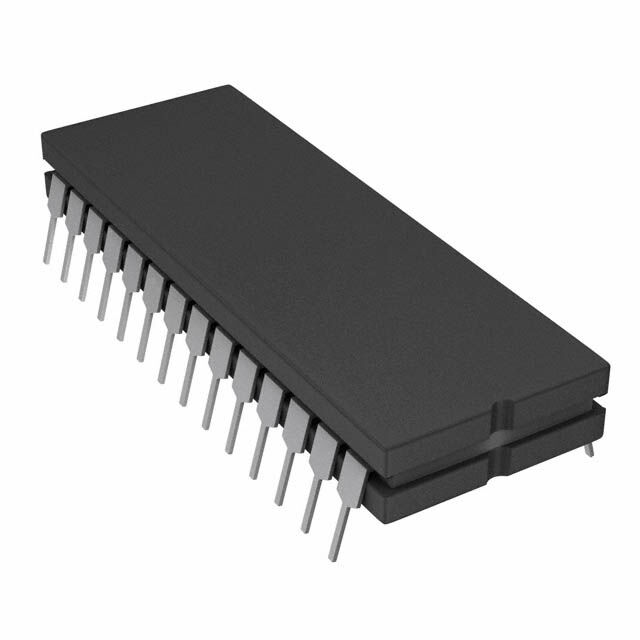

| Physical | Case/Package | CDIP |
| Number of Pins | 28 | |
| Technical | Interface | Parallel |
| Max Dual Supply Voltage | 16.5 V | |
| Max Operating Temperature | 125 °C | |
| Max Power Dissipation | 470 mW | |
| Max Supply Voltage | 16.5 V | |
| Min Dual Supply Voltage | 10.8 V | |
| Min Operating Temperature | -55 °C | |
| Min Supply Voltage | 10.8 V | |
| Nominal Supply Current | 1.5 mA | |
| Number of Channels | 1 | |
| Number of Inputs | 16 | |
| Number of Outputs | 1 | |
| On-State Resistance | 700 Ω | |
| Operating Supply Voltage | 15 V | |
| Propagation Delay | 300 ns | |
| Supply Type | Single , Dual | |
| Turn-Off Delay Time | 450 ns | |
| Turn-On Delay Time | 450 ns | |
| Compliance | Lead Free | Contains Lead |
| Radiation Hardening | No | |
| RoHS | Compliant |
