Prezentare

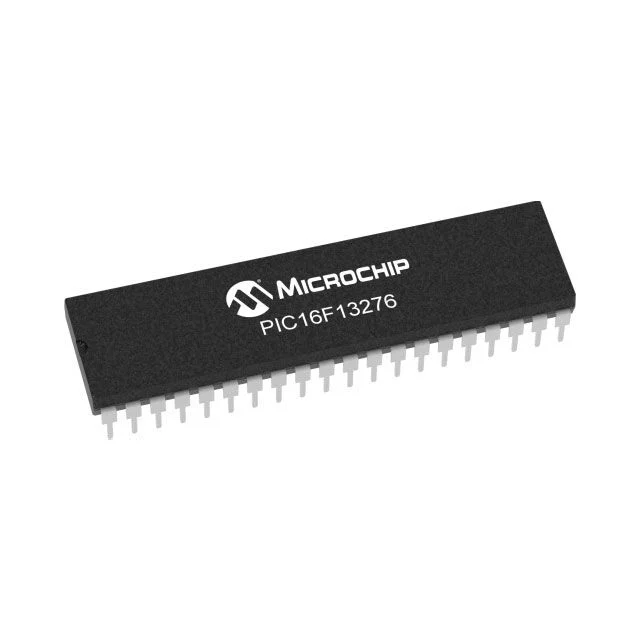

IC MCU 8BIT 14KB FLASH 40DIP
Detalii produs
| Section | Attribute | Value |
|---|---|---|
| Physical | Case/Package | PDIP |
| Mount | Through Hole | |
| Number of Pins | 40 | |
| Package / Case | 40-DIP (0.600 in) | |
| Supplier Device Package | PDIP-40 | |
| Packaging | Tube | |
| Length | 52.32 mm | |
| Width | 13.97 mm | |
| Height | 5.33 mm | |
| Technical | Product Type | 8-Bit Microcontroller |
| Series | PIC16F | |
| Part Number | PIC16F877-04E/P | |
| Core Processor | PIC | |
| Core Size | 8-Bit | |
| Program Memory Size | 14 KB | |
| Program Memory Type | Flash | |
| EEPROM Size | 256 B | |
| RAM Size | 368 B | |
| Maximum Clock Frequency | 4 MHz | |
| Number of I/O | 33 | |
| ADC Resolution | 10 bit | |
| ADC Channels | 8 | |
| Timers | 3 | |
| PWM Channels | 2 | |
| Communication Interfaces | USART, SPI, I2C | |
| MSSP Module | Yes | |
| Capture Compare PWM | CCP | |
| Watchdog Timer | Yes | |
| Power-On Reset | Yes | |
| Brown-Out Reset | Yes | |
| In-Circuit Serial Programming | ICSP | |
| Operating Voltage Min | 4 V | |
| Operating Voltage Max | 5.5 V | |
| Operating Supply Current | 15 mA | |
| Operating Temperature Min | -40 °C | |
| Operating Temperature Max | +125 °C | |
| Oscillator Type | External | |
| Architecture | Harvard RISC | |
| Instruction Set | 35 Instructions | |
| CPU Speed | 1 MIPS | |
| Data EEPROM Endurance | 1000000 Cycles | |
| Flash Program Memory Endurance | 1000 Cycles | |
| Compliance | RoHS | Compliant |
| Lead Free | No | |
| Moisture Sensitive | No | |
| Radiation Hardening | No | |
| ECCN | EAR99 |
