Prezentare

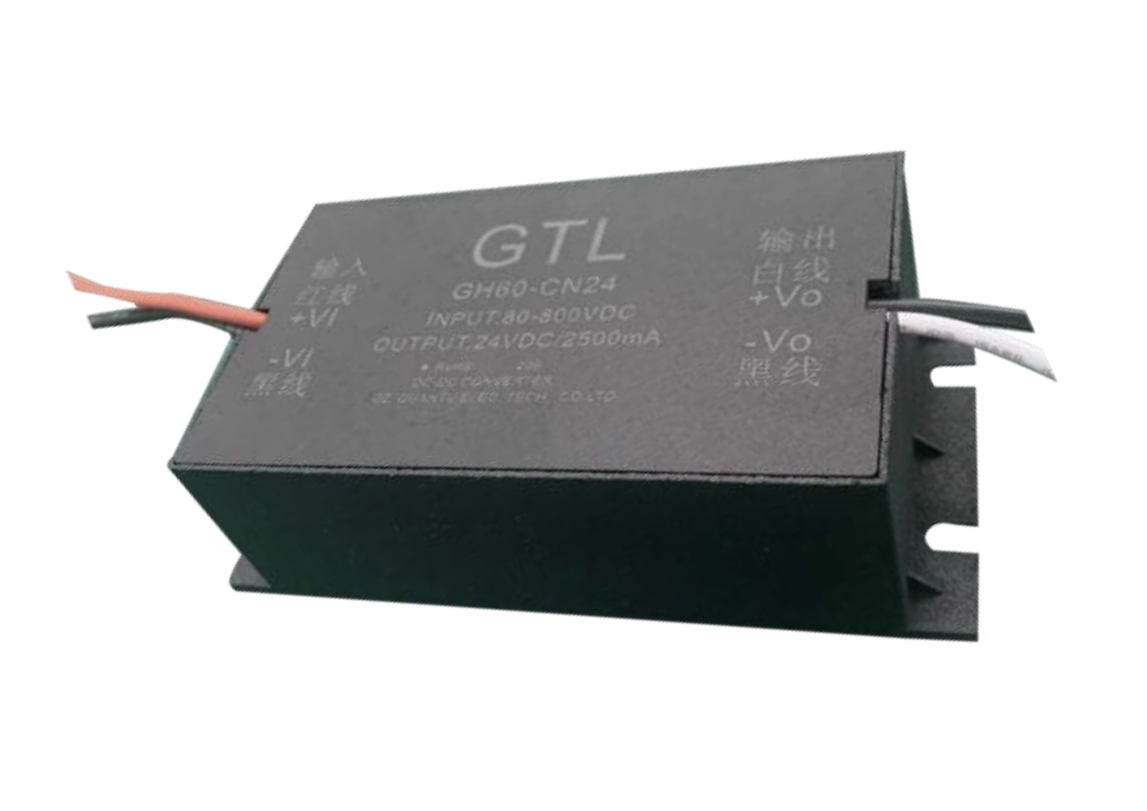

The GH60-CNxx is an ultra-wide input, isolated DC-DC power supply module designed for high-voltage industrial applications, such as energy storage systems and photovoltaic power stations. Manufactured by GTL Power (冠图电子), the series accepts input voltages from 80VDC to 800VDC and offers standard features including CE certification, 4000VDC isolation, overcurrent protection (OCP), and short-circuit protection (SCP).
Detalii produs
| Section | Attribute | Value |
|---|---|---|
| Physical | Case/Package | Module |
| Length | 134 mm | |
| Width | 66 mm | |
| Height | 40 mm | |
| Technical | Product Type | Isolated DC-DC Converter |
| Series | GH60-CNxx | |
| Model | GH60-CN24 | |
| Rated Output Power | 60 W | |
| Input Voltage Min | 80 VDC | |
| Input Voltage Typ | 400 VDC | |
| Input Voltage Max | 800 VDC | |
| Output Voltage | 24 VDC | |
| Output Current | 2.5 A | |
| Typical Efficiency | 81 % | |
| Isolation Type | Input to Output Isolated | |
| Isolation Voltage Input to Output | 4000 VDC | |
| Input Current | 270 mA | |
| Inrush Current | 50 A | |
| Input Reverse Polarity Protection | Yes | |
| Output Voltage Accuracy | ±2 % | |
| Line Regulation | ±1 % | |
| Load Regulation | ±1 % | |
| Ripple and Noise | 240 mVp-p Typ, 480 mVp-p Max | |
| Minimum Load | 0 % | |
| Short Circuit Protection | Continuous, Auto Recovery | |
| Over Current Protection | ≥110%, Auto Recovery | |
| Startup Delay | 6 s | |
| Hold Up Time | 10 ms | |
| Switching Frequency | 65 kHz | |
| Operating Temperature Min | -40 °C | |
| Operating Temperature Max | +85 °C | |
| Storage Temperature Min | -40 °C | |
| Storage Temperature Max | +105 °C | |
| Storage Humidity | 95 %RH | |
| MTBF | 215000 Hours | |
| Applications | Automation, Photovoltaic, Energy Storage, Industrial and Civil Applications | |
| Compliance | Standards | CE EN62477-1, IEC62109, UL1741 |
| Isolation | 4000 VDC |
