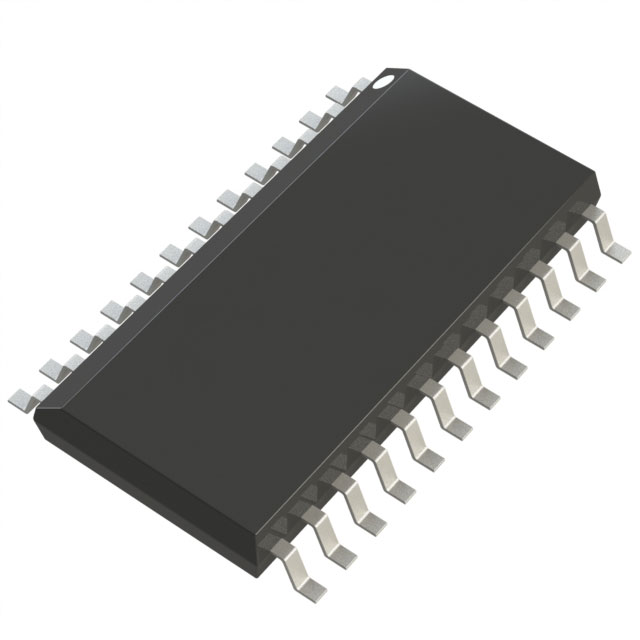

Find and request a quote for AD420ARZ-32 from us. We are offering our customers a wide range of AD.
Detalii produs
| Section | Attribute | Value |
|---|---|---|
| Physical | Case/Package | SOIC |
| Contact Plating | Tin | |
| Number of Pins | 24 | |
| Technical | Conversion Rate | 400 S/s |
| Differential Output | No | |
| Integral Nonlinearity (INL) | 0.012 LSB | |
| Interface | SPI , Serial | |
| Max Input Voltage | 4.995 V | |
| Max Operating Temperature | 85 °C | |
| Max Output Voltage | 9.5 V | |
| Max Power Dissipation | 176 mW | |
| Max Supply Voltage | 32 V | |
| Min Input Voltage | 5.005 V | |
| Min Operating Temperature | -40 °C | |
| Min Output Voltage | 29.5 V | |
| Min Supply Voltage | 12 V | |
| Nominal Supply Current | 4.2 mA | |
| Number of Bits | 16 | |
| Number of Channels | 1 | |
| Number of Converters | 1 | |
| Number of D/A Converters | 1 | |
| Number of DAC Channels | 1 | |
| Number of Outputs | 1 | |
| Output Type | Voltage | |
| Polarity | Unipolar , Bipolar | |
| Reference Voltage | 5 V | |
| Resolution | 16 b | |
| Sampling Rate | 400 S/s | |
| Settling Time | 2.5 ms | |
| Termination | SMD/SMT | |
| Dimensions | Height | 2.65 mm |
| Length | 15.6 mm | |
| Width | 7.6 mm | |
| Compliance | Lead Free | Contains Lead |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS | Compliant |
