Overview

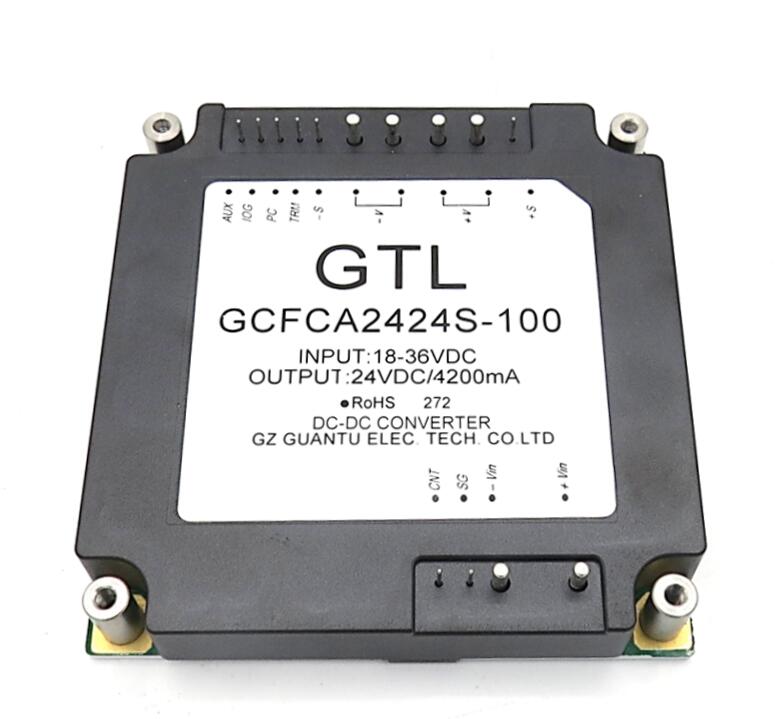

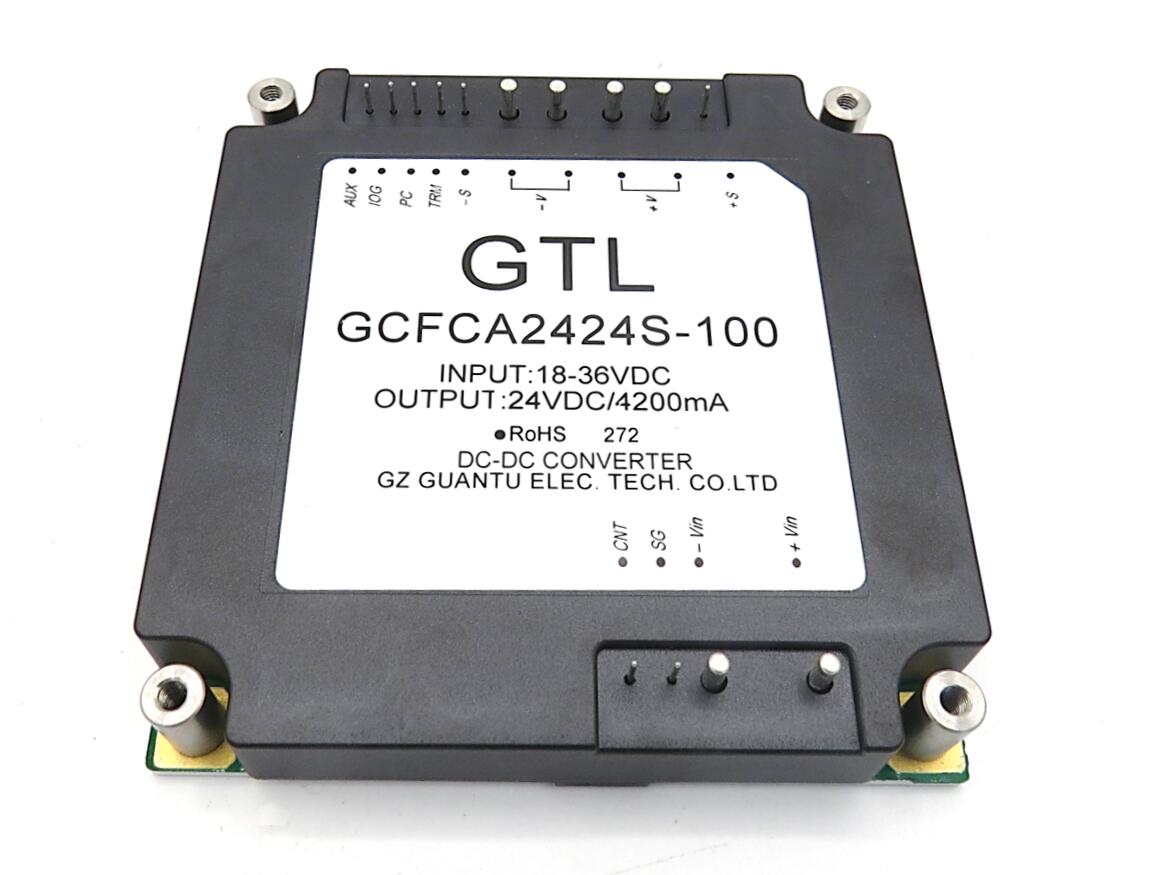

The GCFCA2424S-100 is a 100W isolated DC/DC converter with an 18-36VDC input, 24V output and up to 4.2A output current. It is designed for industrial, telecommunications and embedded power applications.
In addition to new designs, this converter may be considered as a replacement for legacy power modules such as the PH100F24-24, subject to compatibility verification for the specific application.
The GCFCA2424S-100 is often evaluated as a replacement for PH100F24-24 in industrial power applications, subject to electrical and mechanical compatibility checks.
Product Details
| Section | Attribute | Value |
|---|---|---|
| Physical | Case/Package | Quarter Brick Module |
| Mount | Through Hole | |
| Length | 57.9 mm | |
| Width | 36.8 mm | |
| Height | 12.7 mm | |
| Technical | Product Type | Isolated DC-DC Converter |
| Series | GCFCA24245-100 | |
| Output Power | 100 W | |
| Input Voltage Nominal | 24 VDC | |
| Input Voltage Range | 18 VDC to 36 VDC | |
| Output Voltage | 24 VDC | |
| Output Current | 4.2 A | |
| Efficiency | 91 % | |
| Isolation Voltage | 1500 VDC | |
| Switching Frequency | 300 kHz | |
| Remote On/Off | Positive Logic | |
| Output Trim | ±10 % | |
| Remote Sense | Yes | |
| Short Circuit Protection | Continuous | |
| Over Current Protection | Yes | |
| Over Voltage Protection | Yes | |
| Input Under Voltage Protection | Yes | |
| Input Reverse Polarity Protection | No | |
| Operating Temperature Min | -40 °C | |
| Operating Temperature Max | +85 °C | |
| Storage Temperature Min | -55 °C | |
| Storage Temperature Max | +125 °C | |
| Cooling | Natural Convection | |
| MTBF | 1000000 Hours | |
| Load Regulation | ±0.5 % | |
| Line Regulation | ±0.2 % | |
| Ripple and Noise | 100 mVp-p Max | |
| Turn-On Time | 20 ms | |
| Temperature Coefficient | ±0.02 %/°C | |
| Isolation Resistance | 100 MΩ | |
| Isolation Capacitance | 1500 pF | |
| Compliance | RoHS | Compliant |
| Lead Free | Yes |
