Overview

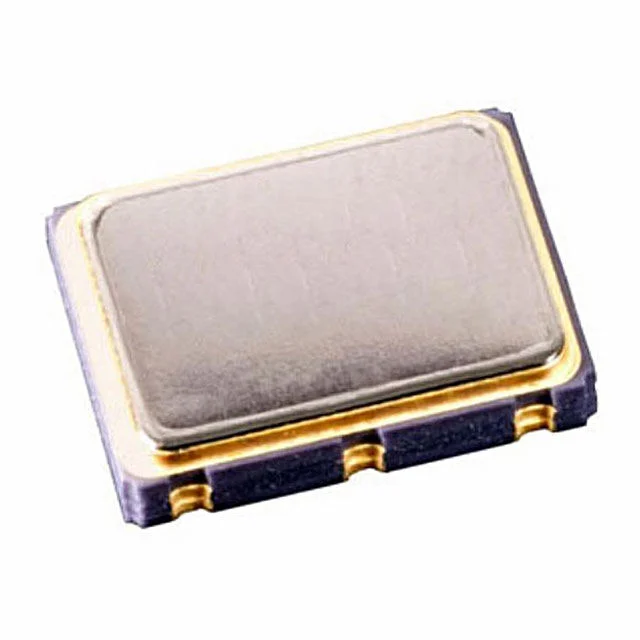

Standard Clock Oscillators Differential/single-ended; single frequency XO; OE pin 1; 0.1-250 MHz
Product Details
| Section | Attribute | Value |
|---|---|---|
| Physical | Case/Package | 6-SMD, No Lead |
| Mount | Surface Mount | |
| Length | 7.00 mm | |
| Width | 5.00 mm | |
| Height | 1.80 mm | |
| Packaging | Tape & Reel (TR) | |
| Technical | Product Type | Crystal Oscillator |
| Series | Si511 | |
| Base Resonator | Crystal | |
| Type | XO (Standard) | |
| Frequency | 50 MHz | |
| Output | LVDS | |
| Supply Voltage | 3.3 V | |
| Frequency Stability | ±25 ppm | |
| Function | Enable/Disable | |
| Operating Temperature Min | -40 °C | |
| Operating Temperature Max | +85 °C | |
| Current Supply Max | 23 mA | |
| Current Supply Disable Max | 18 mA | |
| Phase Jitter | 0.8 ps Typical | |
| Number of Outputs | 1 | |
| Differential Output | LVDS | |
| Spread Spectrum | No | |
| Absolute Pull Range | - | |
| Part Status | Active | |
| Compliance | RoHS | Compliant |
| Lead Free | Yes | |
| REACH | Compliant |
